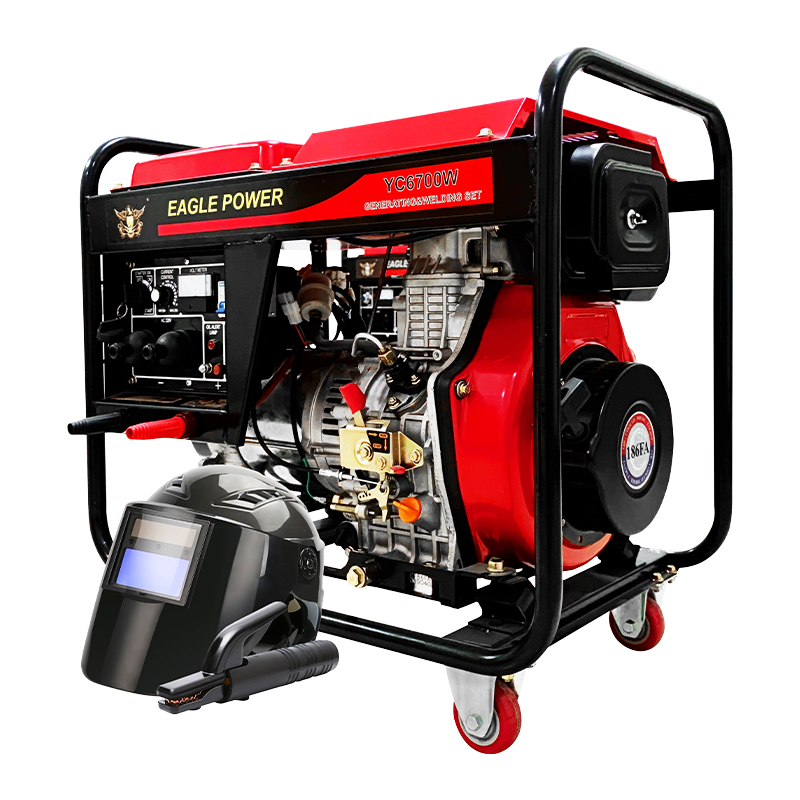

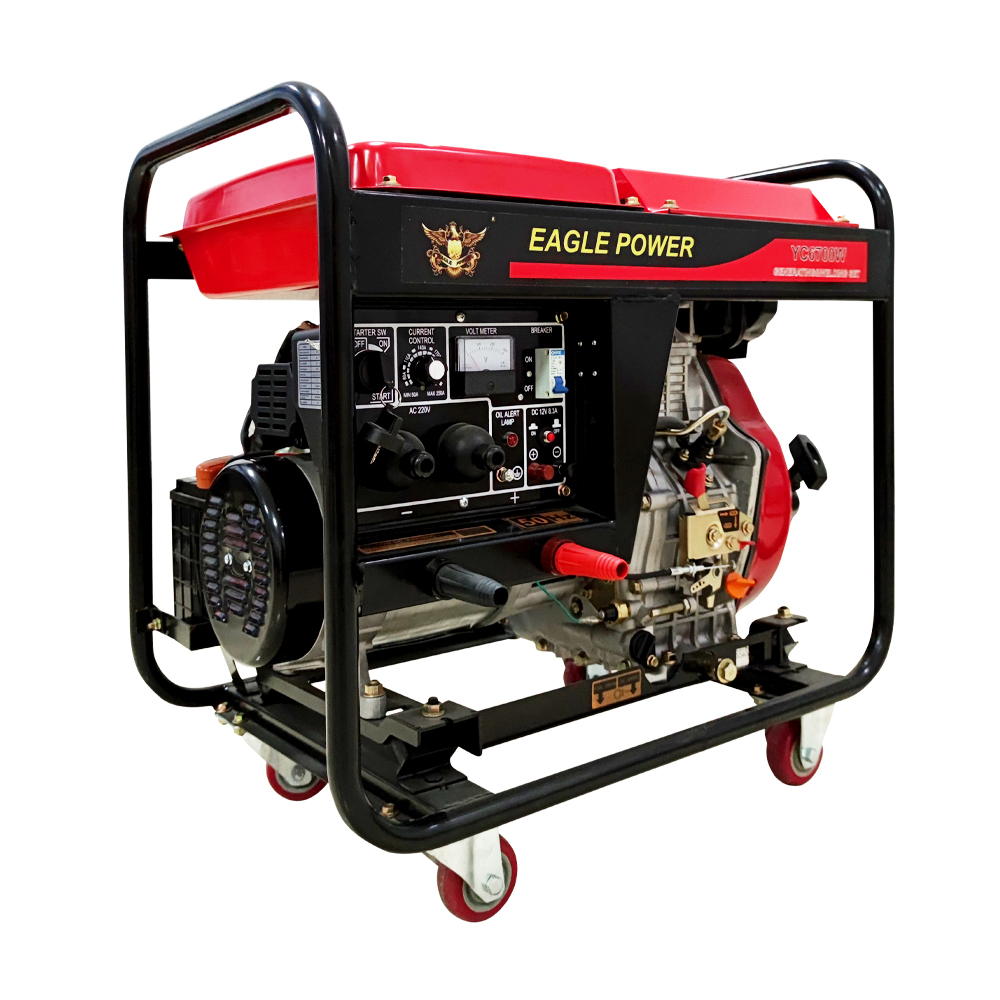

5KW open-frame type-air cooled diesel generator&welding machine-YC6700EW
Parameters
| MODEL：YC6700W | ||||||
| ENGINE | Model | 186FA | GENSET | Voltage | 220，230，240V | |
| Starting method | Electric | Rated power | 4.5KW | |||
| Capacity | 0.418L | Max power | 5.0KW | |||
| Cylinder dimensions | 86*72mm | Frequency | 50HZ | |||
| Lube capacity | 1.65L | Noise（7m） | 65-68db | |||
| Type | Single cylinder,Air-cooled,Four strokes,Vertical | Power factor(COSΦ) | Single phase COSΦ=1.0；Three phase COSΦ=0.8 | |||
| Rated power | 5.7/6.3KW | Insulation class | F | |||
| Max power | 6.3/6.7KW | Current output | 160-185A | |||
| Rated speed | 3000/3600r/m | Fuel consumption | ≦275g/KW/h | |||
| Compression ratio | 20:01 | Fuel tank capacity | 16L | |||
| Lube class | Above CD class | Weight | 115KG | |||
| Fuel class | 0#（For summer）；-10#（For winter） | Dimension | 745*500*630mm | |||
