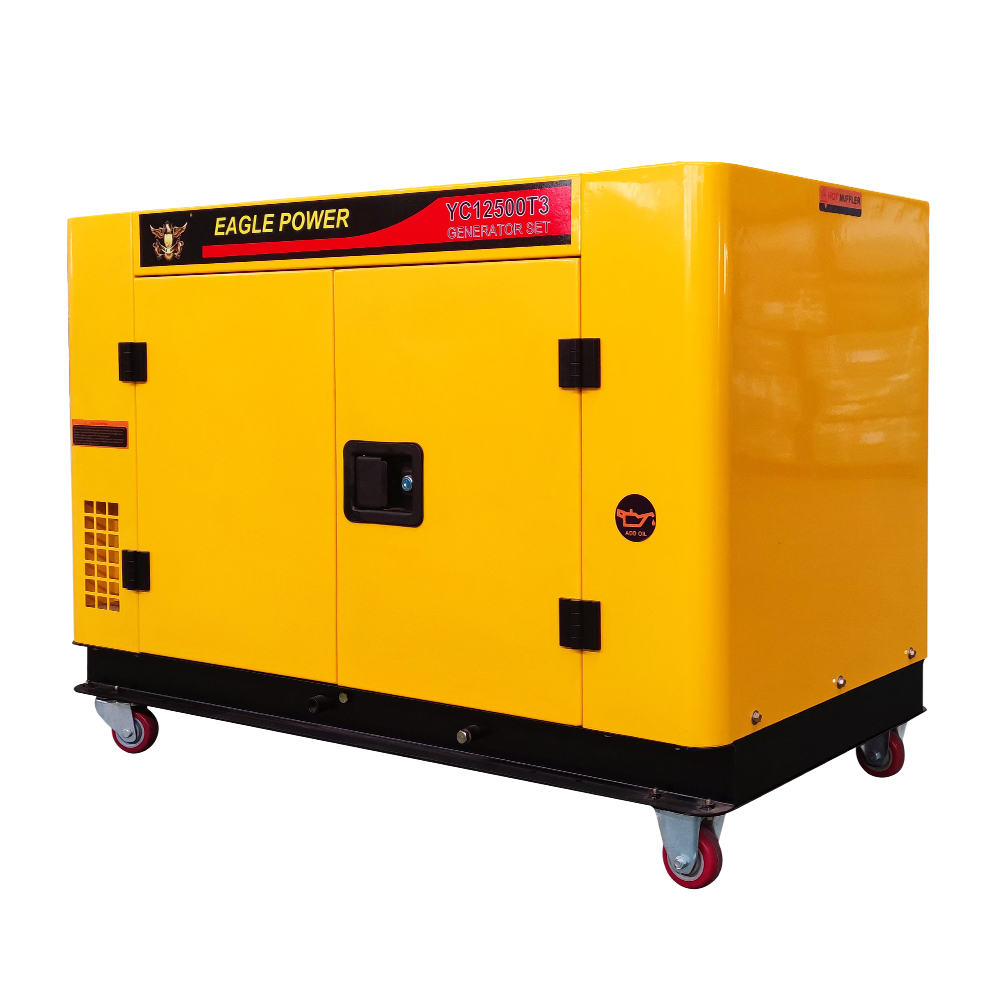

10KW silent type-diesel generator set-YC12500T3

Parameters

MODEL：YC12500T3
ENGINE	Model	2V80	GENSET	Voltage	220，230，240，110/220，120/240，220/380，230/400V
	Starting method	Electric		Rated power	9.0/10KW
	Capacity	0.794L		Max power	10/11.5KW
	Cylinder dimensions	2-80*79mm		Frequency	50/60HZ
	Lube capacity	2.3L		Noise（7m）	75-85db
	Type	Double cylinders,Water-cooling,Four strokes,"V" type		Power factor(COSΦ）	Single phase COSΦ=1.0；Three phase COSΦ=0.8
	Rated power	12/14KW		Insulation class	F
	Max power	12.5/15KW		DC output	12V，8.3A
	Rated speed	3000/3600r/m		Fuel consumption	≦297g/KW/h
	Compression ratio	22:01		Fuel tank capacity	25L
	Lube class	Above CF class		Weight	215KG
	Fuel class	0#（For summer）；-10#（For winter）		Dimensions	1290715800mm
