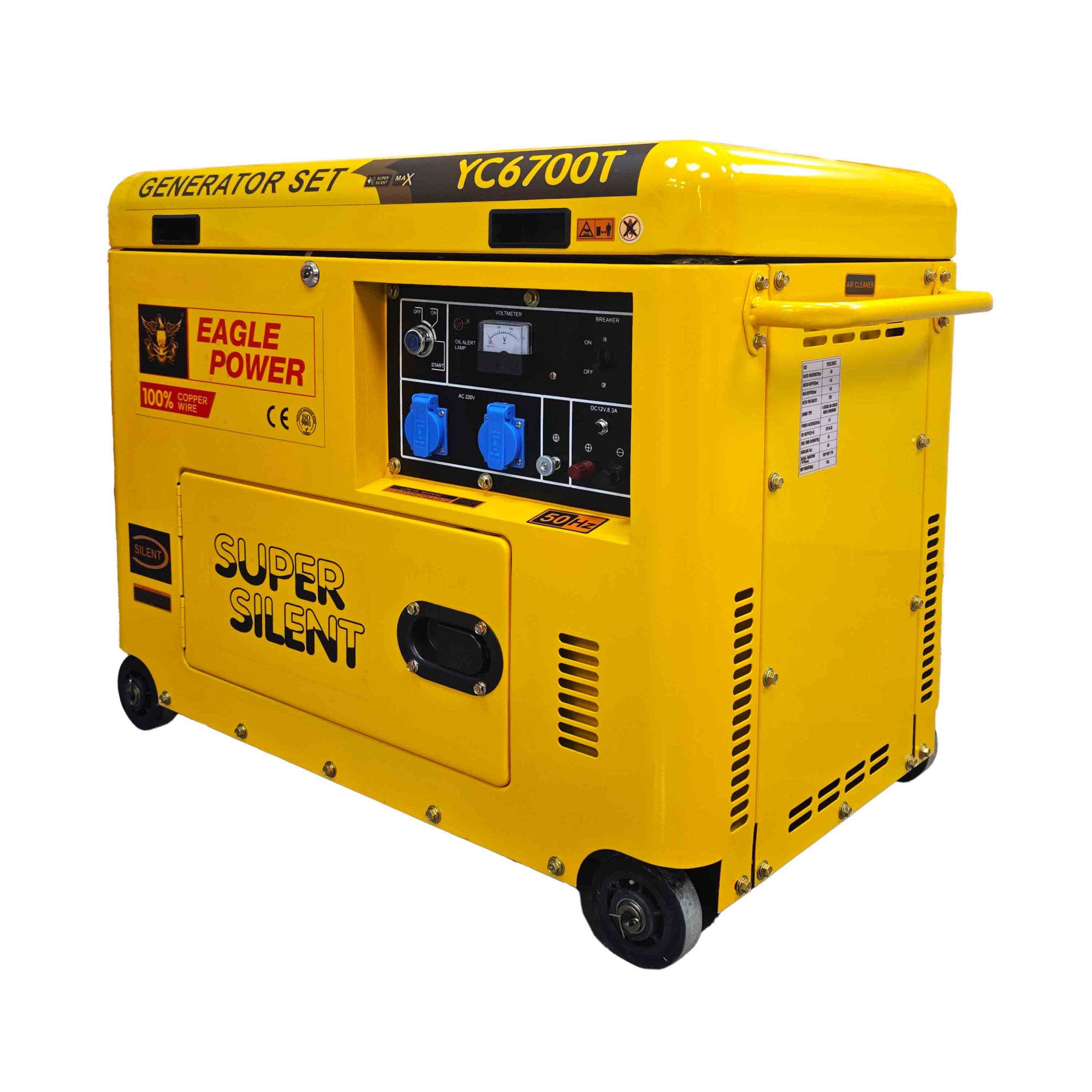

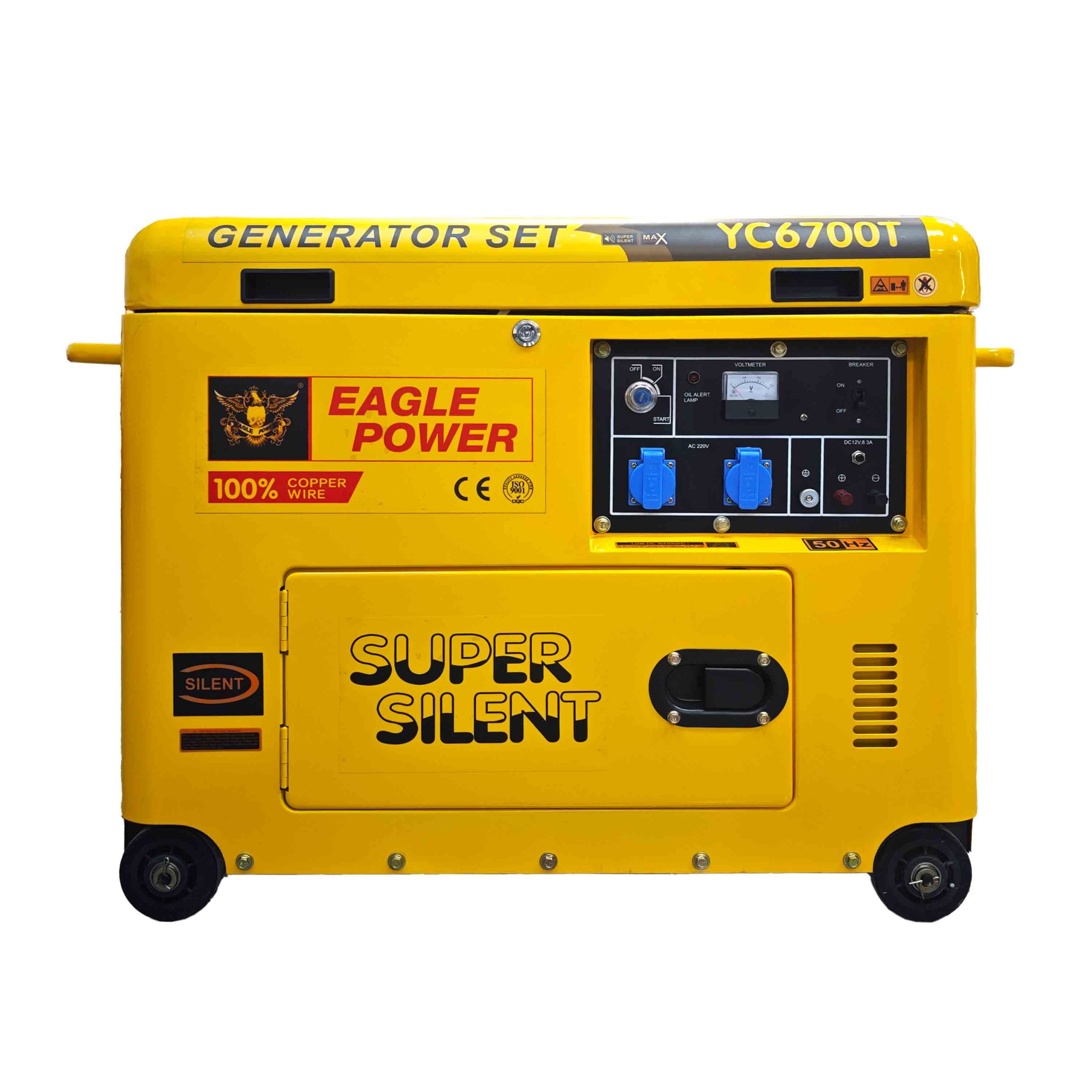

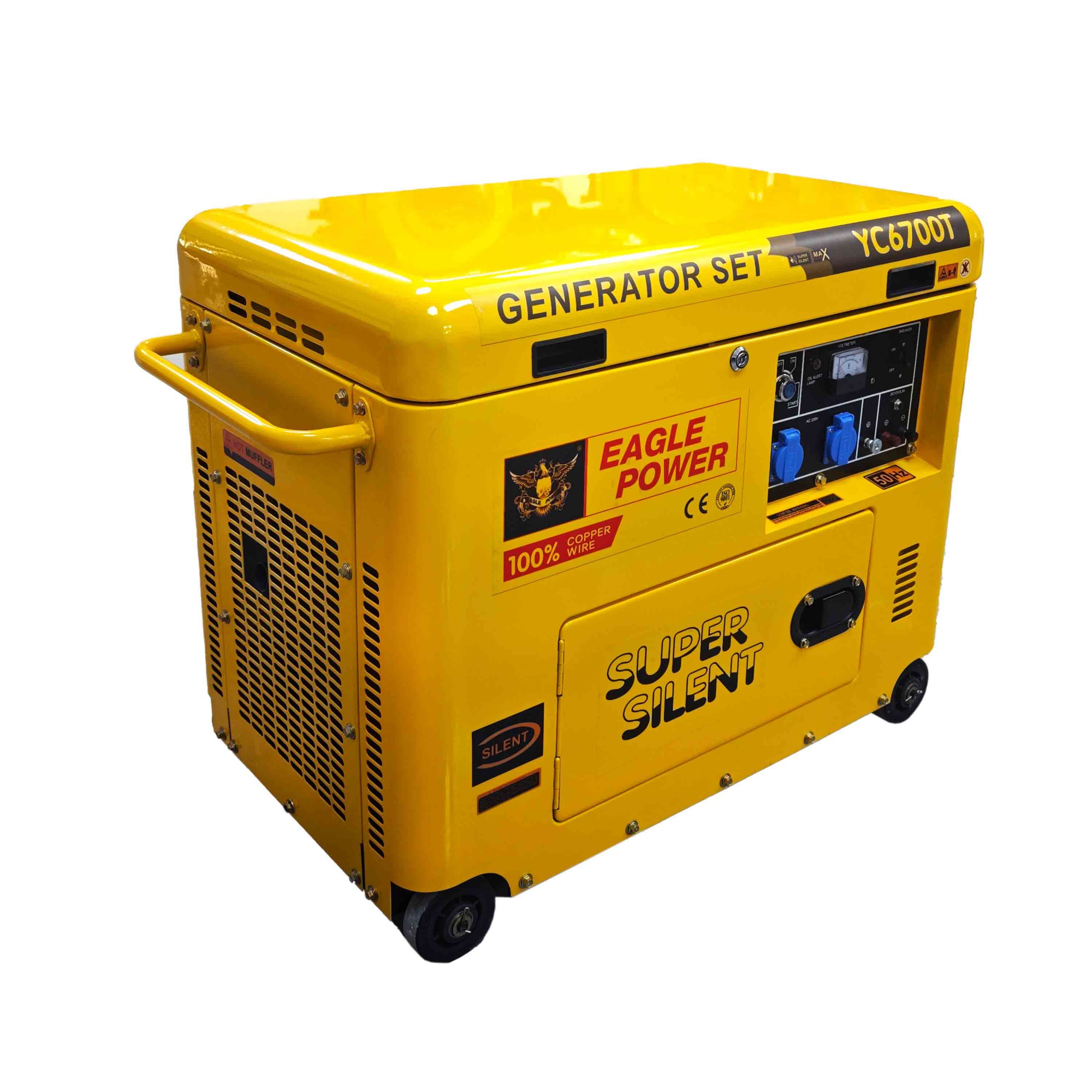

5KW silent diesel generator(fridge type)-air cooled diesel generator set-YC6700T

Parameters

MODEL：YC6700T/T3
ENGINE	Model	186FA	GENSET	Voltage	220，230，240，110/220，120/240，220/380，230/400V
	Starting method	Electric		Rated power	4.5/5.0KW
	Capacity	0.418L		Max power	5.0/5.5KW
	Cylinder dimensions	86*72mm		Frequency	50/60HZ
	Lube capacity	1.65L		Noise（7m）	65-68db
	Type	Single cylinder,Air-cooled,Four strokes,Vertical		Power factor(COSΦ)	Single phaseCOSΦ=1.0；Three phaseCOSΦ=0.8
	Rated power	5.7/6.3KW		Insulation class	F
	Max power	6.3/6.7KW		DC output	12V，8.3A
	Rated speed	3000/3600r/m		Fuel consumption	≦275g/KW/h
	Compression ratio	20:01		Fuel tank capacity	16L
	Lube class	Above CD class		Weight	165KG
	Fuel class	0#（For summer）；-10#（For winter）		Dimensions	930560760mm
